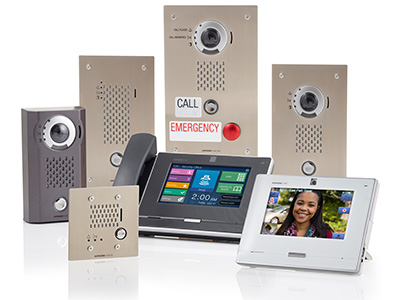

The IX Series is a network-based communication and security system featuring video entry security, internal communication, emergency stations, and paging. All units and app in the systems can unlock doors remotely on a network, assist onsite visitors from an offsite location, broadcast emergency announcements, and communicate using a PoE network.

Features:

  • All IX Series stations are PoE (Power-over-Ethernet)
  • Peer-to-peer design allows quick and simple programming and no single point of failure
  • SIP 2.0 Compliant allowing integration with Cisco Unified Call Manager®.
  • System capacity ranges from small point-of-entry security options to large-scale commercial applications with hundreds of stations
  • Partition station call-ins, door release capability by station, or scheduled transfers between stations
  • System-wide health checks – monitor the components as well as the network connection
  • Line Supervision ensures stations are online

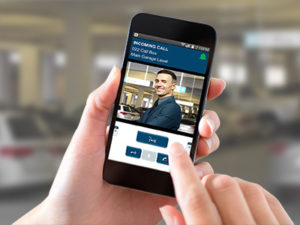

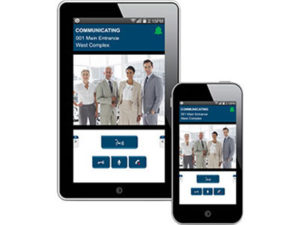

  • IX Mobile offers the functionality of a physical master station in the form of an App for Android and Apple mobile devices
  • Use built-in cameras for two-way master-to-master video conferencing.
  • Upload custom sounds and create a chime schedule for schools or commercial applications.
  • Use ONVIF® for 3rd party IP camera, Network Video Recorders, and VMS integration
  • Easily upgrade legacy IX systems, now and in the future
  • Scheduled, delayed, or absent call transfer
  • Customizable groups and zones for paging at multiple priority levels
  • Turn you master into a virtual receptionist – ideal for unmanned waiting areas or unstaffed lunch hours
  • Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
  • 2 year warranty!
Power Source PoE (802.3af)
Network Interface 10 BASE‑T / 100 BASE‑TX Ethernet (RJ-45)
Network Protocols IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP
Bandwidth Usage Audio (G.711): 64Kbps x 2 for communication, Video (H.264): 24Kbps ~ 2,048Kbps
Communication Hands‑free
Camera Type: 1/4″ colour CMOS VGA
Wire Type CAT-5e or CAT-6
Wiring Distance 100m (Approx. 330′)
