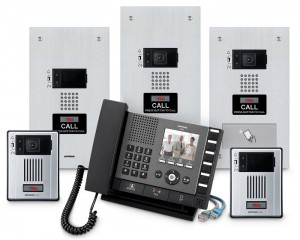

The IX Series is a network-based communication and security system featuring video entry security, internal communication, emergency stations, and paging. All units and app in the systems can unlock doors remotely on a network, assist onsite visitors from an offsite location, broadcast emergency announcements, and communicate using a PoE network.

Features:

  • Scalable system is easy to expand – mix and match an infinite (∞) number of door and master stations!
  • All‑in‑one communication system to control video entry and access control
  • Uses new or existing CAT‑5e or CAT‑6 network infrastructure (multicast support recommended)
  • Program system functions via Support Tool (recommended) or browser
  • IP addressable stations provide easy network communication
  • 24/7 streaming from video door stations
  • ONVIF compliant video output
  • Integration with Lenel® OnGuard®
  • View third party IP cameras from IX-MV master stations
  • Forward missed calls automatically
  • Paging with two priority levels
  • Priority call queuing
  • Transfer door calls to any master station
  • Standard door release wiring to door station or to RY-IP44 for added security

ONVIF Integration (Officially tested):
NVR
Dahua – DH-NVR-4216-8P (Seadan NVR3011)
Hikvision – DS-7616NI-SP
Panasonic – WJ-NV200
Qnap – Viostor2004 Pro

VMS
Milestone Systems – XProtect GO, XProtect Enterprise
Avigilon™ ACC 5
ExacqVision ver. 6.4.5.68890 (x86)

Access Control
Lenel – Onguard

IP Camera (NOT all models are compatible, please contact Aiphone Tech support for model details)
Axis, Bosch, Canon, JVC Kenwood, Panasonic, Sony

Related Information:

IX Series Product Video

Power Source Power Over Ethernet (802.3af) Class 0
Network Interface 10 BASE‑T / 100 BASE‑TX Ethernet (RJ-45)
Network Protocols IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP,
RTP, RTCP, IGMP, MLD, SMTP, DHCP, NTP, DNS
Bandwidth Usage G.711: 64Kbps x 2 per video call,
64Kbps per monitor
H.264: 24Kbps ~ 2,048Kbps
Communication Hands‑free (VOX), push‑to‑talk (simplex),
or handset (full-duplex)
Camera Type: 1/4″ colour CMOS
View Area: 66cm vert. x 94cm horiz. at 6.1m
Video Stream ONVIF Profile S
Door Release Programmable Form C dry contact, 24V AC/ DC,
500mA – use EL‑12S (use RY‑24L for larger
contact rating, which requires 24V DC power
supply) or use RY-IP44 with 4 multipurpose relays
Wire Type CAT-5e or CAT-6 (Not provided by Aiphone)
Distance Door Station or RA Station to Network Node: 100m
Master Station to Network Node: 100m
CSI Specification IX Series CSI Specification
Free Product Demo Contact Aiphone Sales on 02 8036 4507, Option 2
