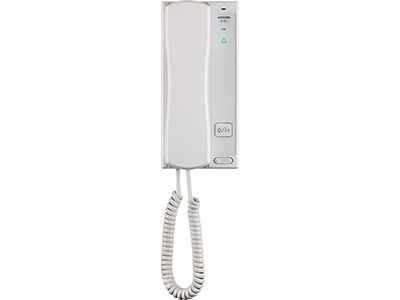

SIP Compatible IP Audio Sub Station Hands-free or Privacy Handset (White)

Features

  • Handset and hands-free communication
  • SIP 2.0 compliant
  • 802.3af PoE, Class 0
  • 8Ω, 2-watt audio output for secondary speaker connection
  • 1 contact output and 1 trigger input
  • Receive calls from door stations with door release
  • Make outgoing calls to predetermined stations
Power Source PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL)
Power Draw 4.32 Watts
Min. illumination 5 lux
Audio Codec G.711 (μ-law, A law), G.722
Video Codec H.264/AVC, motion JPEG
Network Protocols IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
Port Security IEEE 802.1X
Operating Temp -32° – 104°F (-40° – 60°C)
Dimensions 7-9⁄16″ H x 3-9⁄16″ W x 2-⅝” D
Mounting Wall mounting bracket included.
