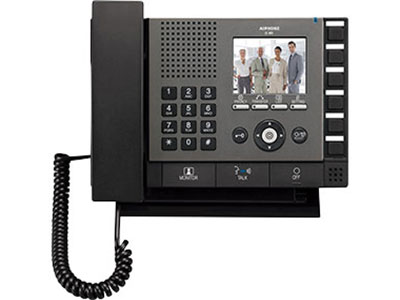

IP Video Master Station

ONVIF Profile S Compliant

  • 802.3af PoE, Class 0
  • 3.5″ LCD screen doubles as the station’s menu screen
  • 6 customizable speed dial buttons
  • Hands-free or handset communication (with available push-to-talk mode)
  • Delayed, Absent, or Scheduled call transfer
  • Monitor individual door stations, or scan monitor groups of stations
Network Interface Hardwired Stations: 10 BASE-T / 100 BASE-TX Ethernet (RJ-45)
Network Protocols IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
Bandwidth Usage Audio (G.711): 64Kbps x 2 for communication, Video (H.264): 24Kbps ~ 2,048Kbps
Communication Hands-free or handset.
Wire Type Cat-5e or Cat-6
Wire Distance 330′
Video Display 3-1/2″ LCD screen
Mounting Wall or desk mount with included stand and bracket.

IX-Quick-Start-Programming-Guide.pdf

IX-MV_V213.zip

IX-MV-Spec.pdf

IX-MV-Master-Station-Web-Setting-Manual.pdf

IX-MV-Master-Station-Installation-Manual.pdf
