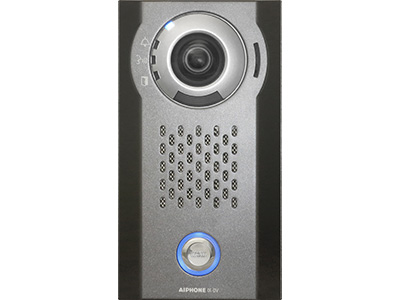

IP Video Door Station

Use SIP to integrate with Cisco Unified Call Manager® and answer calls off-site

  • ONVIF® Profile S Compliant
  • 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
  • 1.23 megapixel fixed color video camera
  • Camera vertical adjustment +15º, 0º, or -8º (manual)
  • White LED for low light illumination
  • Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
  • IP65 rated, weather resistant
  • Stainless steel faceplate
  • 2 contact outputs (door release, external signaling)
  • 6 trigger inputs
  • 2-year warranty!
Power Source PoE (802.3af)
Power Draw 5.28 Watts
Camera ⅓” CMOS 1.23 megapixel
Min. illumination 5 lux
Audio Codec G.711 (μ-law, A law), G.722
Video Codec H.264/AVC, motion JPEG
Network Protocols IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
Port Security IEEE 802.1X
Operating Temp -40° – 140°F (-40° – 60°C)
Protection IP65, IK07
Dimensions 8-1⁄16″ H x 4-½” W x 2-1⁄16″ D
Mounting Surface mounted with included bracket.

IX-DV Specification.pdf

IX-DV_V108.zip
