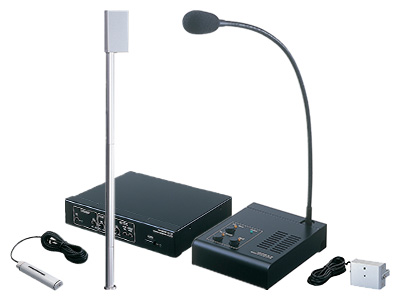

The IM Series is a security window system that provides VOX operated hands-free communication between a customer and an employee on opposite sides of bullet proof glass. The system uses a speaker driver and acoustic tubing to provide communication without compromising the integrity of the glass.

Features:

  • Adjustable, flexible gooseneck microphone
  • Headset can be used (not supplied by Aiphone)
  • Uses voice-actuated (VOX) communication system, requiring no additional operations during conversation
  • When the TALK switch is off, the Operation Unit is put in standby, but sound from public side is still heard at reduced volume
  • By linking the system to a motion sensor, communication mode is activated when a customer is present
Power Source
24V DC, 120mA standby, 780mA max. Use PS-2420
Communication

Voice-actuated communication (VOX) or simplex Transmit output: 3W 4Ω Receive output: 1.5W 16Ω Impedance: 32Ω

Headset

Φ3.5mm plug – Impedance: 32Ω Rated input: 40mW or more – Max. input: 100mW or more

External & Paging Speaker

Impedance: 4 to 8Ω Rated input: 3W or more – Max. input: 6W or more

Wiring

DR-100 to MU-100: 2 x 2-cond., overall shield

Wire Type

AE7090220B: 200m Beige Ø0.9mm
AE7090220G: 200m Gray Ø0.9mm
AE7090210B: 100m Beige Ø0.9mm
AE7090210G: 100m Gray Ø0.9mm

Spec Sheet:
Installation & Operation
